Software Architectures#

MultiRunnable target to help developers builds parallelism humanly and clearly. Also, the arthur of MultiRunnable does their best to develop and design package so that it could let developers extends every customized features they need.

Here is the records about software architectures of every components of MultiRunnable. There are 4 components:

  • Entire Architecture

    UML about software relations with Executor, Pool and running strategies by client site object uses.

  • Running Strategy

    UML about software relations with running strategies and how it work to return target instance by adapter StrategyAdapter.

  • Synchronization

    UML about software relations of synchronous features.

    • Adapter Modules

    Focus on generating instance of synchronization features.

    • API Modules

    Display the UML how it work with AdapterOperator object.

  • Persistence

    UML about software relations about persistence of MultiRunnable.

    • File

    UML about software relations of all modules in subpackage multirunnable.persistence.file.

    • Database

    UML about software relations of all modules in subpackage multirunnable.persistence.database.

Note: In some architectures schematic diagrams, it has an object with green color background which is the client site uses the features of the component.

Entire Architecture#

Below are all the modules which be related with others in this section:

modules

  • multirunnable.mode

  • multirunnable.executor

  • multirunnable.pool

  • multirunnable.factory.strategy

  • multirunnable.framework.runnable.strategy

From the example of home page or demonstration in section Executor Usage in Quickly Start (or Pool Usage) like below:

Executor:

from multirunnable import SimpleExecutor, RunningMode

executor = SimpleExecutor(mode=RunningMode.Parallel, executors=3)
executor.run(function=<Your target function>, args=<The arguments of target function>)

Pool:

from multirunnable import SimplePool, RunningMode

pool = SimplePool(mode=RunningMode.Parallel, pool_size=3, tasks_size=10)
pool.async_apply(function=<Your target function>, args=<The arguments of target function>)

It works as Parallel with RunningMode.Parallel. It would turn to work as Concurrent with RunningMode.Concurrent. What does it do in the Back-End? Here’s a UML about relations with Executor, Pool and running strategy.

UML:

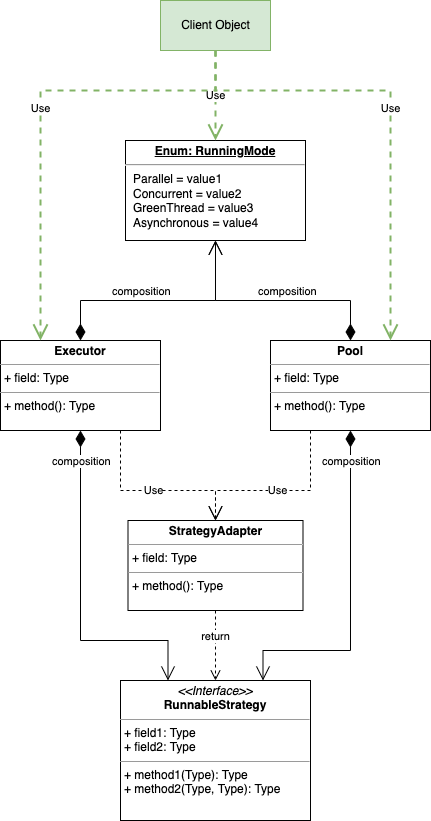

software architecture image about basic APIs

Client object like the Executor or Pool example code above, its running procedure is:

  1. Initial running strategy object to get the instance with RunningMode from StrategyAdapter.

  2. StrategyAdapter returns a running strategy instance back to Executor or Pool to use.

  3. Executor or Pool truly runs the target function as parallelism.

It has more details about running procedure in sections Executor Work Flow or Pool Work Flow in Flows.

Running Strategy#

Below are all the modules which be related with others in this section:

modules

  • multirunnable.mode

  • multirunnable.factory.strategy

  • multirunnable.framework.runnable.strategy

  • multirunnable.parallel.strategy

  • multirunnable.concurrent.strategy

  • multirunnable.coroutine.strategy

Running strategy modules must be the important sections in MultiRunnable. It manages and controls how it works and what it does with the RunningMode.

In running strategy, it has 2 different template classes: GeneralRunnableStrategy and PoolRunnableStrategy. GeneralRunnableStrategy for a single runnable object and PoolRunnableStrategy for the pool of runnable objects. Hence AsynchronousStrategy only implement the former but doesn’t implement the latter. Others strategies, Process, Thread or Green Thread, they all implement both of these template classes.

No matter which strategy be uses, it could return result data by method get_result(). MultiRunnable also has a abstract class Resultable to define the attributes about returning result value. Absolutely, all strategies implement it, too.

Finally, MultiRunnable controls which running strategy it should use with RunningMode by StrategyAdapter.

UML:

software architecture image about running strategies

Running Procedure:

  1. StrategyAdapter receive RunningMode value of option.

  2. Parse the value of Enum object RunningMode and initial running strategy object.

  3. Instantiate target running strategy instance and return it.

Synchronization#

The synchronization features of MultiRunnable be classified to 3 parts: multirunnable.factory, multirunnable.api and multirunnable.adapter. The first one responses of generating instance and the second one provides operators of the instance. And the third one combines the features of multirunnable.factory and multirunnable.api in it.

Please refer to Synchronization API to get more details if it needs.

Synchronization - Factory#

Below are all the modules which be related with others in this section:

modules

  • multirunnable.factory.base

  • multirunnable.factory.lock

  • multirunnable.factory.communication

  • multirunnable.api.manage

  • multirunnable.framework.factory.base

  • multirunnable.parallel.synchronization

  • multirunnable.concurrent.synchronization

  • multirunnable.coroutine.synchronization

Subpackage Factory generates instance only. It would generate instance with RunningMode and also could set it as a global variable (save in module multirunnable.api.manage) to let every runnable object uses.

It was named Adapter before, it be renamed as Factory in version 0.17.0.

UML:

software architecture image about synchronization feature with subpackage 'multirunnable.factory'

Running Procedure:

  1. Set the FeatureMode to property feature_mode of objects in multirunnable.factory.lock or multirunnable.factory.communication.

  2. Parse the value of Enum object FeatureMode and initial feature object.

  3. Instantiate target feature instance and assign it to global variable.

Synchronization - API#

Below are all the modules which be related with others in this section:

modules

  • multirunnable.api.operator

  • multirunnable.api.manage

  • multirunnable.framework.api.operator

Subpackage API provides all operators with the instance of synchronization feature. It would get the instance from the global variable (in module multirunnable.api.manage) which be assigned by Adapter modules to operate.

UML:

software architecture image about synchronization feature with subpackage 'multirunnable.api'

Running Procedure:

  1. Get the target synchronization feature instance from the manage module.

  2. Operate via the instance.

Note:

About the entire working flow, please refer to Synchronization Work Flow.

Synchronization - Adapter#

Below are all the modules which be related with others in this section:

modules

  • multirunnable.adapter.lock

  • multirunnable.adapter.communication

  • multirunnable.factory.base

  • multirunnable.factory.lock

  • multirunnable.factory.communication

  • multirunnable.api.operator

  • multirunnable.framework.adapter.lock

  • multirunnable.framework.factory.base

  • multirunnable.framework.api.operator

It combines features Factory and API in the subpackage Adapter. Therefore, it could generate mapping instance and provide all operators with the instance of synchronization feature. In generally, it’s a great idea to choice to use Adapter instead of Factory or API because it could let you focus on one object when you’re using synchronization feature.

Subpackage Adapter is new in version 0.17.0.

UML:

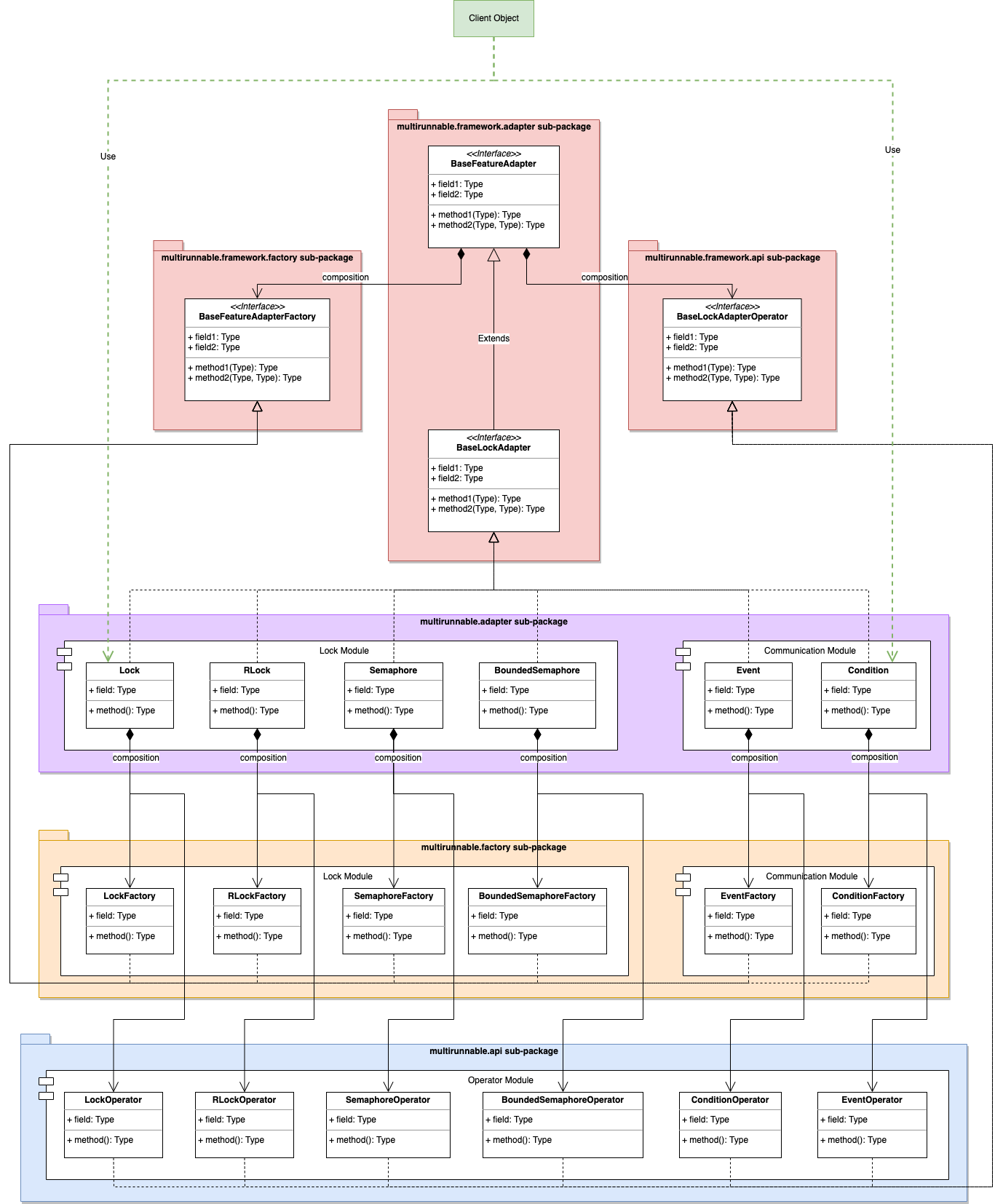

software architecture image about synchronization feature with subpackage 'multirunnable.adapter'

Running Procedure:

  1. Set the FeatureMode to property feature_mode of objects in multirunnable.adapter.lock or multirunnable.adapter.communication.

  2. Parse the value of Enum object FeatureMode and initial feature object.

  3. Instantiate target feature instance and assign it to global variable.

  4. Get the target synchronization feature instance from the manage module.

  5. Operate via the instance.

Persistence - File#

Below are all the modules which be related with others in this section:

modules

  • multirunnable.persistence.interface

  • multirunnable.persistence.file.files

  • multirunnable.persistence.file.archivers

  • multirunnable.persistence.file.saver

  • multirunnable.persistence.file.mediator

  • multirunnable.persistence.file.layer

Subpackage .persistence.file provides some different file formatters to save, and it also has some saving strategies to save in different ways for parallelism. It has some modules in this subpackage:

  • Files

    It defines all attributes and methods a file formatter object should have . The file formatter object also be provided to Saver object to use.

  • Archivers

    It’s same as Files but for archiver format.

  • Savers

    Define the saving or compressing process with the Files or Archivers.

  • Mediators

    The decision about who could do what thing.

  • Persistence Layer

    The facade that provides APIs which has encapsulated some methods using above modules to developers to use.

For example, Files and Archivers: what it can do. Savers: how it work with them. Mediators: how it can work. Persistence Layer: all in it to use.

UML:

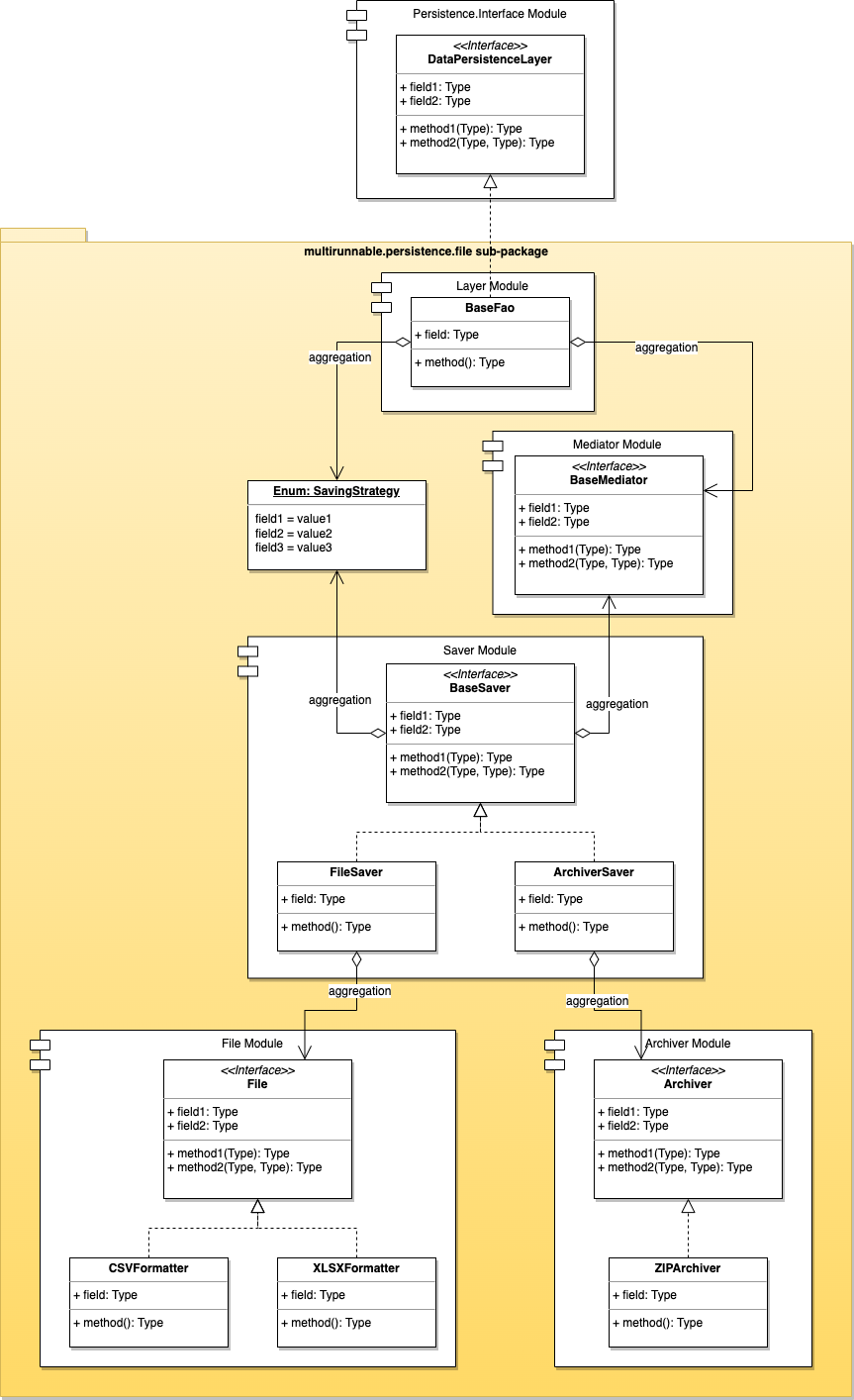

software architecture image about persistence feature with subpackage 'multirunnable.persistence.file'

Running Procedure:

  1. Receive mediator and saving strategy.

  2. Initial mediator.

  3. Saving process.

It would run in different way with different saving strategy in the saving process. About working flows, please refer to Persistence as file Work Flow to get more info. About details, please refer to Persistence as File API.

Persistence - Database#

Below are all the modules which be related with others in this section:

modules

  • multirunnable.persistence.interface

  • multirunnable.persistence.database.strategy

  • multirunnable.persistence.database.operator

  • multirunnable.persistence.database.layer

Concept of subpackage .persistence.database like as .persistence.file. It could initial connection instance with 2 strategies and classifies to 3 sections:

  • Connection Factory

    It responses of generating database connection instance.

  • Database Operators

    Implementation of database operators.

  • Persistence Layer

    The facade that provides some APIs to let subclass to use.

In short, Connection Factory: how the instance be initial to get and connect to instantiate. Database Operators: what operators it has. Persistence Layer: the template which has database operators for subclass.

UML:

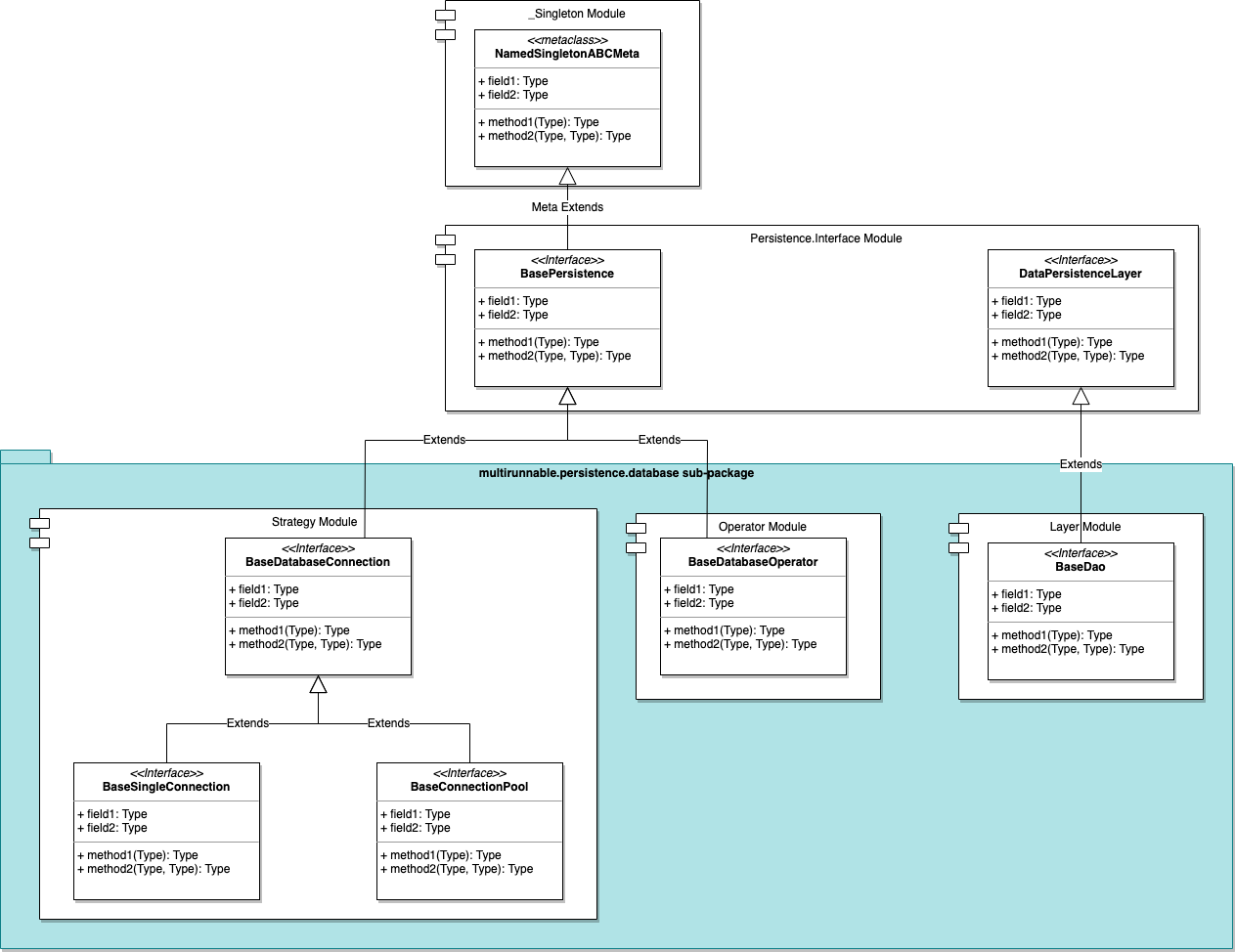

software architecture image about persistence feature with subpackage 'multirunnable.persistence.database'

Running Procedure:

  1. Instantiate the subclass of DatabaseConnection (it has 2 strategy: BaseSingleConnection and BaseConnectionPool).

  2. Instantiate the subclass of DatabaseOperator with argument which value is the instance of subclass of DatabaseConnection.

  3. Extend BaseDao and implement the method database_opt which would return the instance of subclass of DatabaseOperator.

  4. Do some operators by the instance of the subclass of BaseDao.

About persistence with database working flows, please refer to Persistence with database Work Flow to get more info. About details, please refer to Persistence with Database API.
